Model Name
|

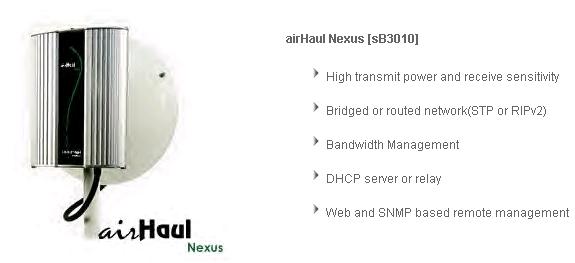

airHaul Nexus
(Currently shipping)
|
|
Model
|
sB3010
|
|
Number of Radios
|
One
|
|
Radio Frequency Bands
|
Unlicensed ISM and UNII bands 2.400 – 2.485 GHZ, 5.150 – 5.350, 5.470 – 5.725, 5.725 – 5.875 GHz
|
|
Wireless Modulations/Data Rates
|
COFDM with BPSK, QPSK, 16 QAM, 64QAM Modulation.
Data Rates – 54, 48, 36, 24, 18, 12, 11, and 6 Mbps.
Resistant to long Multi Path delays.
|
|
Standards Compliance
|
IEEE 802.11b, 802.11g and 802.11a, sB Enhanced mode.
|
|
Investment Protection
|
Software programmable Multi Band radio provides easy migration path
|
|
Transmit Power Output
at the N Connector
(Adjustable)
|
+24 dBm to -4 dBm @ 6 Mbps, +21 dBm to -4 dBm @ 54 Mbps (2.4 GHz)
+21 dBm to -4 dBm @ 6 Mbps, +18 dBm to -4 dBm @ 54 Mbps (5.x GHz)
|
|
Receive sensitivity
at the N Connector
|
-96 dBm @ 6 Mbps, -73 dBm @ 54 Mbps (2.4 GHz)
-93 dBm @ 6 Mbps, -69 dBm @ 54 Mbps (5.x GHz)
|
|
RF Interference Mitigation
|
TPC, DFS (801.11d/h), Tight Spectral Mask, Multi-band operation, Resistant to long Multi Path delays
|
|
RF Channels
|
27 non-overlapping channels, 20 MHz wide, 5 MHz spacing
Note – All channels may not be available in your regulatory domain
|
|
Max Data Throughput
|
15 Mbps
|
|
Max Link Distance with
- 23 dBi Dish Antenna
- 29 dBi Dish Antenna
|
13 km (8 miles)
50 km (30 miles)
|
|
Bandwidth Management
|
Link Bandwidth Management for upstream and downstream rates
|
|
Data Throughput Turbo Booster
|
Packet Concatenation, Packet Bursting and Compression for high spectrum efficiency
|
|
Access Protection
|
MAC Authentication
|
|
Data Security
|
WiFi Protected Access (IEEE 802.11i), 64/128 bit WEP
|
|
VLAN
|
VLAN passthrough
|
|
Layer 3 Routing
|
RIPv2
|
|
High Availability System
|
Self monitoring and auto recovery at various levels. Hardened Linux Operating System and device drivers.
|
|
CPU/Memory
|
High performance
400 MHz Intel IXP
network processor,
32MB SDRAM,
16MB FLASH memory
|
|
Fully Transparent Bridge
|
With Spanning Tree Protocol (STP) - a Layer 2 link management protocol that provides path redundancy while preventing loops in the network (IEEE 802.1D)
|
|
Motherboard
|
ESD and electrical overstress protection on all I/O ports, Extended temperature range electronics, Temp. sensor, Watchdog timer to ensure high availability, Compressed journaling file system, Fail safe network boot-loader, System configuration database with factory default settings
|
|
Network Support Utilities
|
DHCP Server, Relay and Client. NTP Client
|
|
Management, Monitoring and Diagnostics
|
Unified Web GUI and SNMP based management. SNMP v2c, MIB II, Bridge MIB, Remote Link Test, Syslog and SNMP traps to a list of IP numbers
|
|
Calendar Function
|
Pre-schedule device activites (e.g. for time-of-day based bandwidth management)
|
|
Network Connection
|
Dual 10/100 BaseT, Auto MDI/MDX, RJ45 Fast Ethernet ports with built-in surge protection. Power output on 2nd Ethernet port for seamlessly daisy chaining additional devices
|
|
Antenna Connector
|
Wide variety of certified antennas for flexibility in designing cell coverage.
Dual N (Female) Bulkhead Connectors (50 Ohm) for external antenna connections
For Certified Antenna specifications, click here
|
|
Antenna Alignment Aid
|
Audio Tone Antenna Alignment aid
|
|
Certification
|
USA : FCC 47 CFR Part 15C, Section 15.247 – FCC Certification- ID: PWG NEXUS1
|
|
Compliance
|
Europe: ETSI 301-893, CE Marked Canada : RSS 139
Japan: MPT Radio Regulations
|
|
Mounting
|
Complete Radio, and mounting bracket for installation on wall or pole
|
|
Power Supply
|
Power over Ethernet for the radio unit
|
|
Power Consumption
|
48V, 150mA (7.2W)
|
|
PoE Injector (sB2840)
|
Includes lightning and overstress protection circuit, Remote reset and factory default of radio, Wall mountable unit, Grounding cable, 48V-30W power brick (Indoor rated)
For details click here.
|
|
Operating Environment
|
-45ºC to +60ºC (-50ºF to +140ºF), 5% to 95% non-condensing humidity. Outdoor rated.
|
|
Dimensions
|
198 x 62 x 250 mm (7.79" x 2.44" x 9.84")
|
|
Total Shipping Weight
|
Approx. 3.3 kg (7.26 lbs) [unit weight]
|
