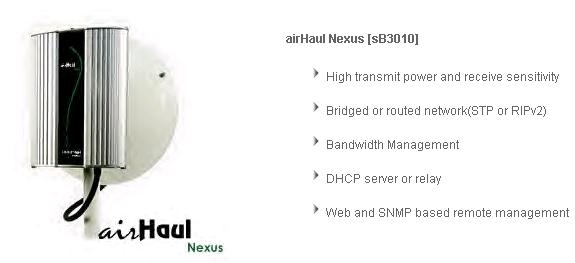

The airHaul™ Nexus is a LongRange™ multi-band radio used in Near-Line-Of-Sight applications for Point-to-Point wireless wide area networks. Its unique features will help Service Providers enhance the stability of their existing infrastructure to deploy large and scalable networks.

The airHaul Nexus, designed with feedback from our valued customers, is made specifically to suit your wireless backhaul requirements. You can be assured of smartBridges’ carrier class, easy to deploy and easy to maintain qualities. The airHaul Nexus has many intelligent features to help Wireless ISPs build carrier class networks.

Procuct Brochure

HotPort 3000

HotPort 3000 outdoor Router

HP Pavillion dv 1-40 cd w wi-fi

Includes DVD Burner! Order Online Now!

30 Mile -AirHaul Long Distance Wide Area Wireless Networking

Wide Area Wireless Outdoor Networking

Hotpoint Outdoor Wireless Mesh Router 2 Mile Range

Wide Area Wi-Fi Access Point

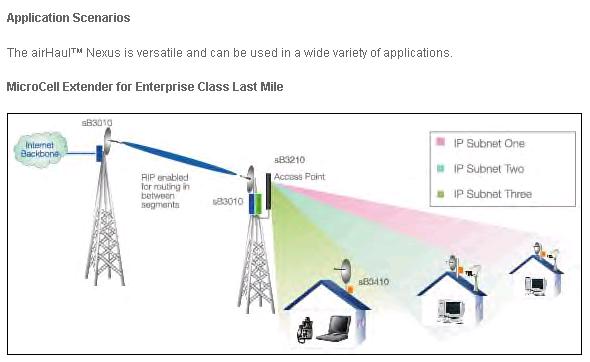

The airHaul™ Nexus offers a cost effective solution for a Wireless ISP to provide coverage for suburban and rural areas. One radio can be configured for backhaul operation and daisy chained to an Access Point.

                                     Technical Specifications

Model Name	airHaul Nexus (Currently shipping)
Model	sB3010
Number of Radios	One
Radio Frequency Bands	Unlicensed ISM and UNII bands 2.400 – 2.485 GHZ, 5.150 – 5.350, 5.470 – 5.725, 5.725 – 5.875 GHz
Wireless Modulations/Data Rates	COFDM with BPSK, QPSK, 16 QAM, 64QAM Modulation. Data Rates – 54, 48, 36, 24, 18, 12, 11, and 6 Mbps. Resistant to long Multi Path delays.
Standards Compliance	IEEE 802.11b, 802.11g and 802.11a, sB Enhanced mode.
Investment Protection	Software programmable Multi Band radio provides easy migration path
Transmit Power Output at the N Connector (Adjustable)	+24 dBm to -4 dBm @ 6 Mbps, +21 dBm to -4 dBm @ 54 Mbps (2.4 GHz) +21 dBm to -4 dBm @ 6 Mbps, +18 dBm to -4 dBm @ 54 Mbps (5.x GHz)
Receive sensitivity at the N Connector	-96 dBm @ 6 Mbps, -73 dBm @ 54 Mbps (2.4 GHz) -93 dBm @ 6 Mbps, -69 dBm @ 54 Mbps (5.x GHz)
RF Interference Mitigation	TPC, DFS (801.11d/h), Tight Spectral Mask, Multi-band operation, Resistant to long Multi Path delays
RF Channels	27 non-overlapping channels, 20 MHz wide, 5 MHz spacing Note – All channels may not be available in your regulatory domain
Max Data Throughput	15 Mbps
Max Link Distance with - 23 dBi Dish Antenna - 29 dBi Dish Antenna	13 km (8 miles) 50 km (30 miles)
Bandwidth Management	Link Bandwidth Management for upstream and downstream rates
Data Throughput Turbo Booster	Packet Concatenation, Packet Bursting and Compression for high spectrum efficiency
Access Protection	MAC Authentication
Data Security	WiFi Protected Access (IEEE 802.11i), 64/128 bit WEP
VLAN	VLAN passthrough
Layer 3 Routing	RIPv2
High Availability System	Self monitoring and auto recovery at various levels. Hardened Linux Operating System and device drivers.
CPU/Memory	High performance 400 MHz Intel IXP network processor, 32MB SDRAM, 16MB FLASH memory
Fully Transparent Bridge	With Spanning Tree Protocol (STP) - a Layer 2 link management protocol that provides path redundancy while preventing loops in the network (IEEE 802.1D)
Motherboard	ESD and electrical overstress protection on all I/O ports, Extended temperature range electronics, Temp. sensor, Watchdog timer to ensure high availability, Compressed journaling file system, Fail safe network boot-loader, System configuration database with factory default settings
Network Support Utilities	DHCP Server, Relay and Client. NTP Client
Management, Monitoring and Diagnostics	Unified Web GUI and SNMP based management. SNMP v2c, MIB II, Bridge MIB, Remote Link Test, Syslog and SNMP traps to a list of IP numbers
Calendar Function	Pre-schedule device activites (e.g. for time-of-day based bandwidth management)
Network Connection	Dual 10/100 BaseT, Auto MDI/MDX, RJ45 Fast Ethernet ports with built-in surge protection. Power output on 2nd Ethernet port for seamlessly daisy chaining additional devices
Antenna Connector	Wide variety of certified antennas for flexibility in designing cell coverage. Dual N (Female) Bulkhead Connectors (50 Ohm) for external antenna connections For Certified Antenna specifications, click here
Antenna Alignment Aid	Audio Tone Antenna Alignment aid
Certification	USA : FCC 47 CFR Part 15C, Section 15.247 – FCC Certification- ID: PWG NEXUS1
Compliance	Europe: ETSI 301-893, CE Marked Canada : RSS 139 Japan: MPT Radio Regulations
Mounting	Complete Radio, and mounting bracket for installation on wall or pole
Power Supply	Power over Ethernet for the radio unit
Power Consumption	48V, 150mA (7.2W)
PoE Injector (sB2840)	Includes lightning and overstress protection circuit, Remote reset and factory default of radio, Wall mountable unit, Grounding cable, 48V-30W power brick (Indoor rated) For details click here.
Operating Environment	-45ºC to +60ºC (-50ºF to +140ºF), 5% to 95% non-condensing humidity. Outdoor rated.
Dimensions	198 x 62 x 250 mm (7.79" x 2.44" x 9.84")
Total Shipping Weight	Approx. 3.3 kg (7.26 lbs) [unit weight]
